Building Products

Innovation System for the construction and civil works industry

CC&N Global offer the MARKET LEADING fast and simple Construction System for any type of constructions from houses, offices, and other buildings to complex civil works applications

The system is based on the unique properties of a combination of Steel panels and Steel Beams which when injected with alleviated concrete form an unique construction material.

Applications

Public works.jpg

PUBLIC WORKS

Tunnels, vaults, arches, sewages, conduits; reinforced with an exceptionally thin & resistant layer


SOILS

Stabilisation and re-vegetation of slopes & embankments; without the need of concrete nor retainer walls


ROADS

Reinforcement of the granular sub-base of roads, improving the resistance and longevity leading to reduced costs and increased durability


CONSTRUCTION

Building new cities, new residential districts, houses, compounds, urbanisations, theme parks, public attractions,

Technology


MATERIAL

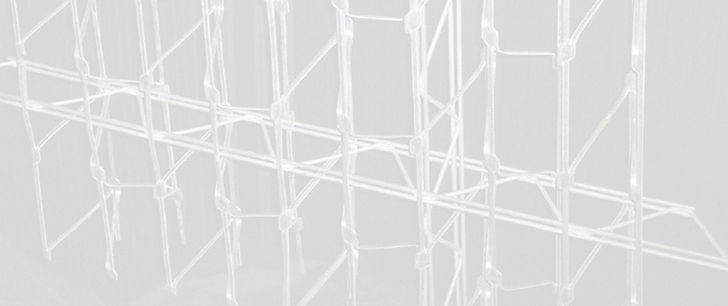

The Panel is an expanded type of steel mesh, cast in a continuous process from a 1.6mm thick and 30cm wide galvanized steel sheet coil.

  • Height: 3m (It can be tailor-made to any smaller length at 25cm increments)

  • Width: 1.2m

  • Thickness: 8cm

  • Area: 3.60m²

  • Weight: 12Kg.


MANUFACTURING

The Panel is manufactured:

  • From a single sheet of high resistance and galvanized steel

  • Without any soldering, melting or other type of assembling

  • Via a continuous cutting and tri-dimensional forming of the steel ribbon


SHIPPING

The Panels are stacked and palletized, as illustrated, as soon as they are manufactured.



The system is then shipped to the construction site either by truck or by container.



Due to its design, the Panels do not bulk out but use up the whole payload of a container or of a truck, making shipment very cost effective.


HANDLING

On site, the Panels are ready to be assembled, easy to handle (they weigh only 12kg each), and quick to install (each panel builds approx. 3.6m² of wall or ceiling).

Projects

FEATURES

  • High quality & durability

  • Short construction time

  • Cost effective

  • No forms, shuttering, frames or casings

  • High structural strength

  • Insulation incorporated in walls, floors & roof

  • No Chiselling - Wires & pipes embedded in the walls

  • Total style & architectural    flexibility

NO PREFAB

Entirely built & customised
on site from steel, cement, EPS, beads, concrete mixer, pump and labour

MINIMAL

  • Construction equipment

  • Manpower

  • Construction time

  • Logistics

    Example: 250m², G+1 Concrete Shell entirely built on site by 5 men in 10 working days

ENVIRONMENTAL

  • Energy efficient

  • No moisture trap walls perspirate

  • Thermal & sound efficient

  • Non-Flammable

  • No termites, insects, rodents    or fungus

  • No clay or wood used for    walls or roofs
